> Fiber Optic Patch Cords and Cables
OM3 Aqua FO Patch Cord
- Connector A: SC
- Connector B: LC
- Fiber: Single-mode or Multi-mode
- Polishing: PC,UPC,APC
- Product description: Tianyi manufacutres OM3 10G 50/125 multimode fiber optic patch cord cables. The OM3 fiber optic patch cord cables are compliant to ISO/IEC 11801 standards. These fiber optic cables are used for 10Gbps
Product introduction

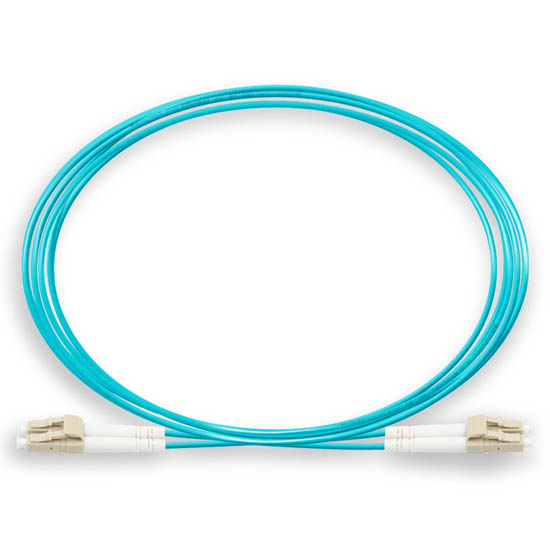

OM3 10G Aqua fiber optic patch cord Cable Assembly
We supply OM3 50/125 multimode fiber optic cables that are compliant to ISO/IEC 11801 standards. These cables are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.
The OM3 fiber cable has been developed according to the newest 10Gbit standards and allows the data transmission over a distance up to max 300 m at 850 nm. Due to its excellent optical characteristics, other than the conventional 600/1200 nm fibers, the OM3 fiber optic cable is applicable for backbone connections based on a cost-efficient multi-mode technology up to 10Gbit. OM3 fiber patch cables are also available for short distance high data rates fiber optic communications.

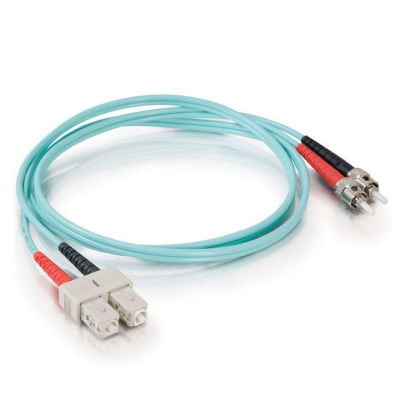

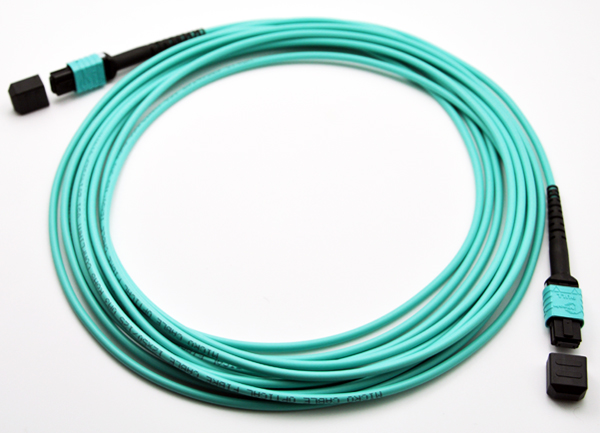

We supply the OM3 fiber optic cables both indoor type and outdoor types, including various kinds of OM3 fiber cable assemblies with various connectors like SC, ST , FC, LC, MTRJ ,etc.
Application
¨ Telecommunication
¨ CATV, FTTH, LAN
¨ Fiber oiptic sensors
¨ Optical transmission system
¨ Test equipment
Features
¨ Low insertion loss, high return loss
¨ Excellent mechanical endurance
¨ High credibility and stability
¨ Good in repeatability and exchangeability
¨ 100% Insertion, Return Loss, End Face and Interference inspection
Technical Data
|
Parameter |
Unit |
FC, SC, LC |
ST, MU |
MTRJ, MPO |
E2000 |
||||||||
|
SM |
MM |
SM |
MM |
SM |
MM |
SM |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion Loss |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return Loss |
dB |
≥45 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Repeatability |
dB |
≤0.1 |
|||||||||||
|
Durability |
dB |
≤0.2dB typical change, 1000 matings |
|||||||||||
|
Operating temperature |
℃ |
-20 ~ +75 |
|||||||||||
|
Storage temperature |
℃ |
-40 ~ +85 |
|||||||||||
Ordering Information
|
Connector 1 |
Connector 2 |
Fiber Core |
Cable Diameter |
Fiber Type |
Polishing |
Cable Jacket |
Cable Color |
Fiber Length |
|
LC SC FC ST Customized ... |
LC SC FC ST Customized ... |
Simplex Duplex |
0.9mm 2.0mm 3.0mm |
SM:9/125um MM:50/125um MM:62.5/125um OM3 |
PC UPC APC |
PVC LSZH |
Yellow Orange Aqua others |
1M 2M 3M … 10M 20M 30M … |
