LC-LC Fibre Optic Patch Cord
- Product description: 9/125mm, LC-LC Singlemode Duplex Fibre Optic Patch Cord, length from 1 meter to 50 meters. Custom fiber optic cable assembly available.
Product introduction

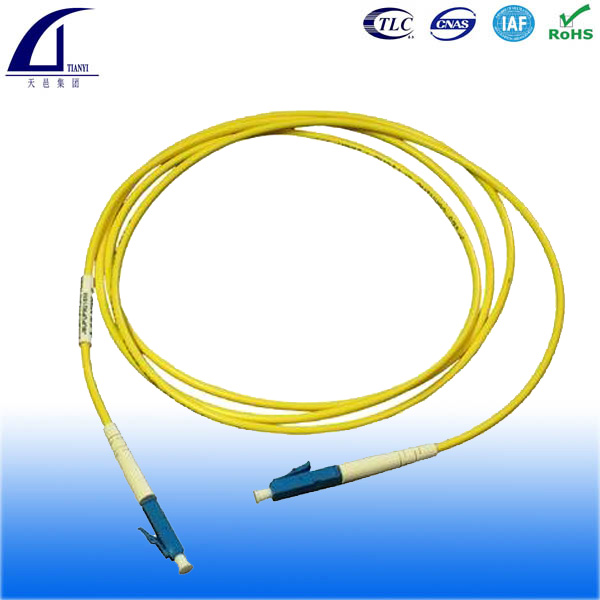

9/125mm, LC-LC Singlemode Simplex Fibre Optic Patch Cord
Description:
A fibre optic patch cord, also called fibre optic patch cable is a fibre optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.
PC, UPC, and APC polish available.
Feature:
1. Low insertion loss
2. High return loss
3. Great repeatability
4. High temperature stability
5. High interchangeability
6. Simplex and duplex are available
Application:
1. CATV
2. Optical fiber communication systems
3. Optical fiber data transmission
4. Building network access
5. Cabling system, ODF
6. FTTX applications
Fiber Optic Connectors Types | |||
ST | SC | LC | MT-RJ |
The ST connector uses a push-and-turn-to- lock system. |
Has a molded plastic plug casing and a push/pull locking system. |
Small form factor connector that resembles a mini SC connector. |
Small form factor connector with a square plastic casing that contains both fiber strands in a single polymer ferrule. |
Connector type |
SC; FC; LC; ST; MTRJ; MU; E2000; MPO; SMA; FDDI; DIN4; D4 |
Ferrule End face |
PC; UPC; APC |
Om type |
9/125UM; 50/125UM; 62.5/125UM |
Cable quantity |
Simplex; Double; 6cores; 12cores; 16cores; 24cores; 36cores; 48cores |
Cable Diameter |
Φ3.0MM; Φ2.0MM; Φ0.9MM |
Cable length |
1M; 2M; 3M; 4M etc., can be customized |
Cable type |
PVC; LSZH; OM3; OFNR; OFNP; Plenum; Armored |
Cable Jacket - The outermost layer of the fiber cable.
Strengthening fibers - The strengthening fibers that help protect the core against damage during installation or from being crushed.
Coating - This layer of thicker plastic surrounds the cladding and helps protect the fiber core.
Cladding - The layer that protects the core and causes the neccessary reflection to allow light to travel through the fiber-core segment.
Core - The physical component that transports the optical data signal, made up of a continuous strand of glass. The core's diameter is measured in microns.
Explanation of Fiber Cable | ||
Core | Cladding | Mode |
62.5 | 125 | Multimode |
This number means that the core diameter of this cable is 62.5 microns. |
This number means that the cladding of this cable is 125 microns. |
This refers to the mode of the cable. |
Custom fiber optic patch cables, fiber optic pigtails,fiber optic cable assembly available. Welcome to inquiry us.
