Description

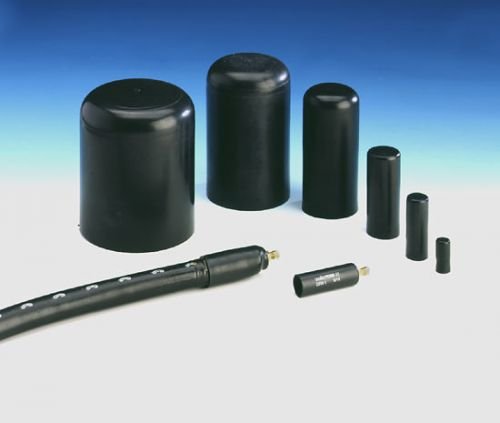

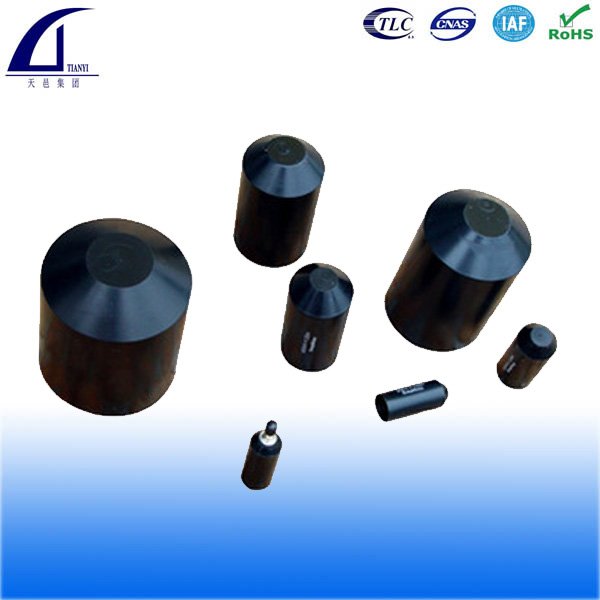

RSM Heat Shrink Cable End Caps,also called heat shrink end cap, heat shrink end seal
Description of RSM Heat Shrink Cable End Cap:
Equal to Raychem 102L heat shrink cable caps, our RSM heat shrink cable caps ensure that cable ends are waterproof and permit long-term storage without the risk of moisture penetration. Our standard end caps for sealing cable ends in unpressurized or low performance pressurized applications. It is a medium-wall molded cap internally coated with hot-melt adhesive (an integrated valve is optionally available), of which the temperature range is -30~60°C.
Why choose our heat shrink end caps?
1. From a raw material to process products, all products testing are carried out within the factory;
2. Key equipment–Electron irradiation accelerator to improve good stability, high mechanical strength, high thermal shrinkage and good heat resistance features;
3. Experienced in both telecommunication bidding and contracting projects;
Features:
- Easy and fast installation
- Abrasion resistance and mechanical protection
- Shrinkable Ratio up to: 3:1
- EVA hot melt adhesive or Polyamide hot-melt adhesive for pressuried cable can be employed for inner spiral coated adhesive.
Specifications:
Description | Max. inside Diameter before Shrinkage | Min. inside Diameter after shrinkage | Length | Applicable cable Pairs (W.D:0.4 &0.5) | |
23×9 | 23 | 9 | 100 | 10-50 | |
27×12 | 27 | 12 | 150 | 50-150 | |
40×15 | 40 | 15 | 150 | 150-300 | |
48×18 | 48 | 18 | 150 | 300-400 | |
56×22 | 56 | 22 | 200 | 500-800 | |
76×27 | 76 | 27 | 200 | 800-1400 | |
90×37 | 90 | 37 | 250 | 1600-2400 |
Remarks: Custom size,logo and printing available.
