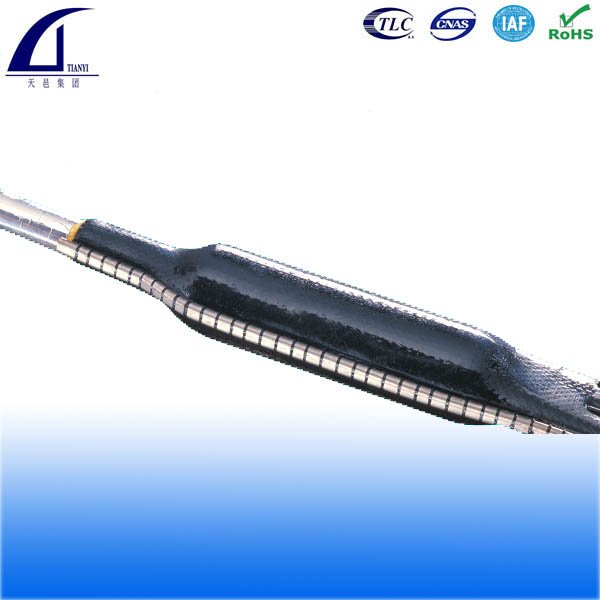

RSBJ 500/550 Fiber Reinforced heat shrinkable closure System for non-pressurized cooper networks
Description of RSBJ 500/550 Non-pressurized Heat Shrinkable Closures:
RSBJ heat shrinkable joint closure system for pressurized cable jointing, which is equal to XAGA 500/550 series heat shrinkable closures manufactured by Tyco.
Structure of RSBJ 500/550 Non-pressurized Heat Shrinkable Closures:
Non-pressure reinforced type: PE + reinforced fiber mesh + PE + foil + adhesive.
Features:
- Easy installation
- Glass fibre composite structure gives high split resistance
- Few components, fast and easy installation
- High “craft friendliness” enhanced by visual indicators for optimum installation
- Approval for 4 cables in or out
- Interchangeable air valve, air connector or low profile blanking screw
- Lead or polyethylene jacketed cables
- Can be used on single and double sheathed cables
- Range of closures to suit all cable sizes
- Hot-melt adhesive designed specifically for non-pressurized closure applications
RSBJ 500/550 Non-pressurized Heat Shrinkable Closures:
Specifications:
| Tianyi P/N | Tyco Equivalent P/N | Max splice bundle diameter, D | Min cable diameter, d | Splice length, L |
| RSBJ 500 43/8-150 | XAGA 500-43/8-150 | 43 | 8 | 150 |
| RSBJ 500 43/8-300 | XAGA 500-43/8-300 | 43 | 8 | 300 |
| RSBJ 500 55/12-150 | XAGA 500-55/12-150 | 55 | 12 | 150 |
| RSBJ 500 55/12-300 | XAGA 500-55/12-300 | 55 | 12 | 300 |
| RSBJ 500 75/15-240 | XAGA 500-75/15-240 | 75 | 15 | 240 |
| RSBJ 500 75/15-400 | XAGA 500-75/15-400 | 75 | 15 | 400 |
| Tianyi P/N | Tyco Equivalent P/N | Max splice bundle diameter, D | Min cable diameter, d | Splice length, L |
| RSBJ 550 43/8-350 | XAGA 550 43/8-350 | 43 | 8 | 350 |
| RSBJ 550 55/12-150 | XAGA 500-55/12-150 | 55 | 12 | 150 |
| RSBJ 550 75/15-250 | XAGA 550 75/15-250 | 75 | 15 | 250 |
| RSBJ 550 75/15-500 | XAGA 550 75/15-500 | 75 | 15 | 500 |
| RSBJ 550 92/25-500 | XAGA 550 92/25-500 | 92 | 25 | 500 |
| RSBJ 550 122/30-500 | XAGA 550 122/30-500 | 122 | 30 | 500 |
| RSBJ 550 122/30-650 | XAGA 550 122/30-650 | 122 | 30 | 650 |
| RSBJ 550 160/42-720 | XAGA 550 160/42-720 | 160 | 42 | 720 |
| RSBJ 550 200/50-500 | XAGA 550 200/50-500 | 200 | 50 | 500 |

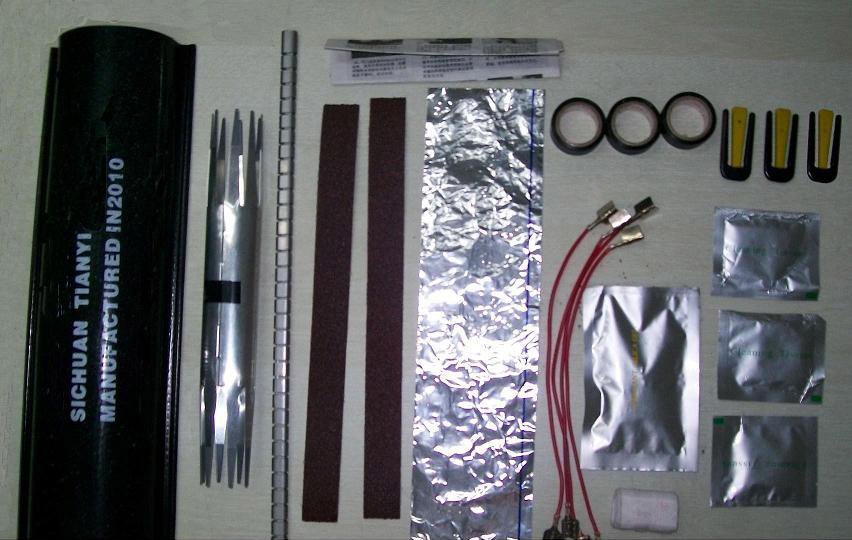

Accessories for Heat Shrinkable Closure(straight joint):
1. Heat Shrinkable Sleeve, 2. Stainless Steel Channel, 3. Channel clip if any,
4. Canister(aluminum or cardboard), 5. Canister Sealing Foil Sheet 6. Foil Protection Sheet,
7. Shield continuity wire with both clips, 8. Abrasive, 9. Cleaning Tissue,
10. PVC tapes, 11. Silica Gel Dessicant, 12. Installation Guide
Accessories for Branch Off Kits:
1. Branching clip,
2. Shield continuity wire with one clip,
3. Connector,
4. Cable Tie
