Description

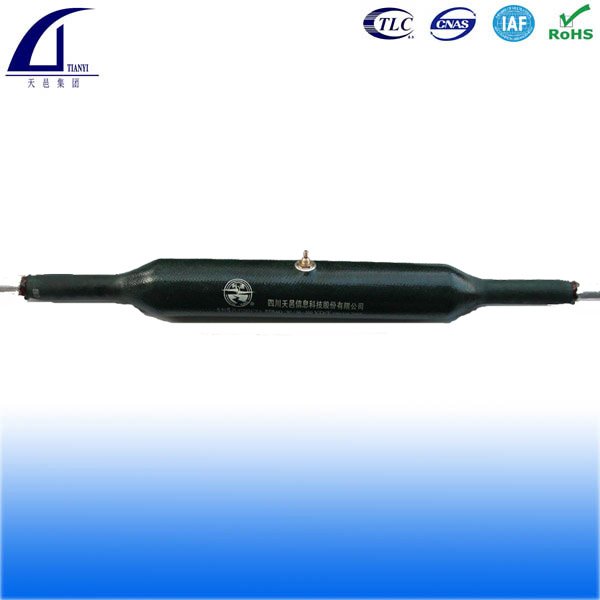

RSBA 1000 Fiber Reinforced Heat Shrinkable Joint Closure System for pressurized cooper networks,equivalent to XAGA 1000 heat shrink closure system
Description of RSBA 1000 Pressurized heat shrinkable closures:
RSBA heat shrinkable joint closure system for pressurized cable jointing, which is equal to XAGA 1000 series heat shrinkable closures manufactured by Tyco.
Structure of RSBA 1000 Pressurized Heat Shrinkable Closures:
Non-pressure reinforced type: PE + reinforced fiber mesh + PE + foil + adhesive.
Features:
- Easy installation
- Glass fibre composite structure gives high split resistance
- Few components, fast and easy installation
- High “craft friendliness” enhanced by visual indicators for optimum installation
- Approval for 4 cables in or out
- Interchangeable air valve, air connector or low profile blanking screw
- Lead or polyethylene jacketed cables
- Can be used on single and double sheathed cables
- Range of closures to suit all cable sizes
- Hot-melt adhesive designed specifically for pressurized closure applications
RSBA 1000 Pressurized Heat Shrinkable Joint Closures:
Specifications:
Description | Max. Splice Bundle Diameter D (mm) | Min. Single Cable Diameter d (mm) | Sheath Opening Length L (mm) | Sleeve Length S (mm) | Cable Pairs | |
W.D 0.4 | W.D 0.5 | |||||
RSBA 43/ 8-200 | 43 | 8 | 200 | 445 | 10-100 | |
RSBA 43/ 8-350 | 43 | 8 | 350 | 600 | ||
RSBA 43/ 8-500 | 43 | 8 | 500 | 755 | ||
RSBA 75/ 15-250 | 75 | 15 | 250 | 505 | 100-200 | |
RSBA 75/ 15-500 | 75 | 15 | 500 | 710 | ||
RSBA 75/ 15-650 | 75 | 15 | 650 | 860 | ||
RSBA 92/ 25-300 | 92 | 25 | 300 | 655 | 200-600 | |
RSBA 92/ 25-500 | 92 | 25 | 500 | 830 | ||
RSBA 92/ 25-650 | 92 | 25 | 650 | 985 | ||
RSBA 122/ 30-300 | 122 | 30 | 300 | 680 | 600-1200 | |
RSBA 122/ 30-500 | 122 | 30 | 500 | 860 | ||
RSBA 122/ 30-650 | 122 | 30 | 650 | 1010 | ||
RSBA 160/ 42-500 | 160 | 42 | 500 | 920 | 1200-2000 | |
RSBA 160/ 42-720 | 160 | 42 | 720 | 1100 | ||
RSBA 200/ 50-500 | 200 | 50 | 500 | 940 | 2400-3200 | |
RSBA 200/ 50-720 | 200 | 50 | 720 | 1120 | ||
Remarks: Custom size,logo and printing available.

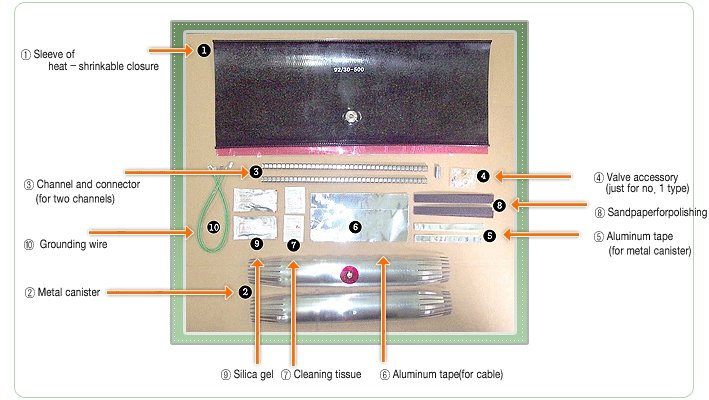

Accessories for Heat Shrinkable Closure(straight joint):
1. Heat Shrinkable Sleeve, 2. Stainless Steel Channel, 3. Channel clip if any,
4. Canister(aluminum or cardboard), 5. Canister Sealing Foil Sheet 6. Foil Protection Sheet,
7. Shield continuity wire with both clips, 8. Abrasive, 9. Cleaning Tissue,
10. PVC tapes, 11. Silica Gel Dessicant, 12. Installation Guide
Accessories for Branch Off Kits:
1. Branching clip,
2. Shield continuity wire with one clip,
3. Connector,
4. Cable Tie
