Description

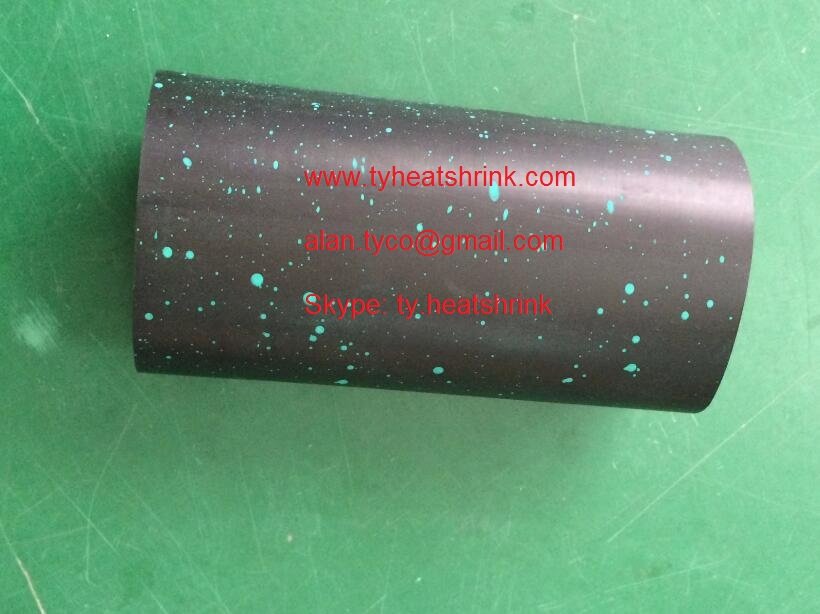

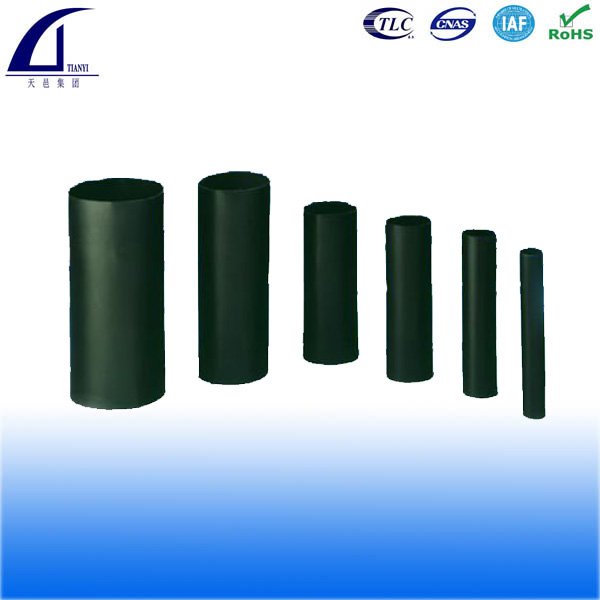

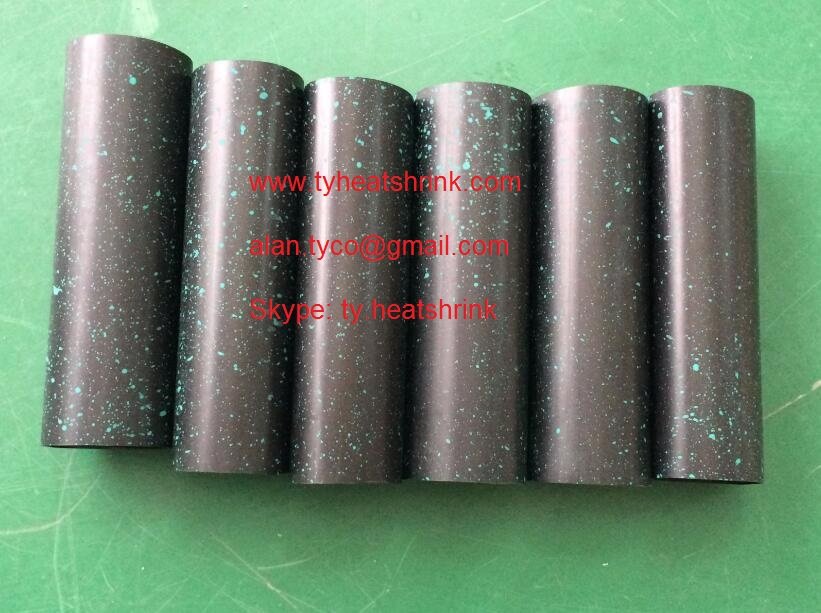

RSY round Heat Shrink Tube Sleeve with adhesive glue – Customized length & size available

Tianyi RSY round heat shrinkable tube sleeve is a medium wall, heat-shrinkable polyolefin tubing with large expansion ratios and an inner liner of hot melt adhesive. Tianyi RSY heat shrink tubing sleeve provides good electrical insulation and, at the same time, resists abrasion and corrosion. The material is tough and provides good mechanical support and strain relief. Typical applications include covering of splices and electrical terminations. RSY heat shrink tubing sleeves provide seals with a variety of synthetic sheath materials and most metals, including lead, aluminum and steel.

Material:
• Outer: irradiation cross-linked modified polyolefin material
• Inner layer: hot melt adhesive
• Single-wall type thick-walled tube does not involve the inner layer

Shrink ratio: 3.5: 1 or 4: 1
Features:
• High shrink ratio, the greater the diameter of the quilt was coverage;
• Black sleeving, has excellent UV resistance;
• Semi-rigid walled polyolefin material has excellent electrical insulation propertiesand mechanical protection properties;
• Minimum fully shrink temperature: 135 ℃.
Application:
High rate of heat-shrinkable tubing of polyolefin material with good electrical insulation properties and mechanical protection properties, the high rate shrinkagecharacteristics for a wide range of sizes harness connection or component connection, internal corrosion sealant make it particularly suitable for corrosion protection of metal pipe connections.

Medium Wall Heat Shrink Tubing Sleeves

Technical Specification:

Item	Test method	Indicator
Range of continuous operating temperature	IEC216	-35℃~110℃
Tensile strength	ASTM D2671	≥14MPa
Elongation at break	ASTM D2671	≥400%
Tensile strength after aging	ASTM D2671(150℃，168h)	≥12MPa
Elongation at break after aging	ASTM D2671(150℃，168h)	≥300%
Volume Resistivity	IEC93	≥1.0×10¹⁴Ω· cm
Breakdown strength	IEC243	≥20kV/mm
Copper stability	ASTM D2671	BY
Axial shrinkage	UL224	0~10%
Concentricity rate	ASTM D2671	≥65%
Cracking resistance	ASTM D1693（50℃）	No cracking
Water absorption	ISO62(23℃，14 days)	≤0.2%
	Hot melt adhesive (single-wall type sixfold thick-walled tube does not involve)
Softening Point	ASTM DE28	85℃
Peel strength（PE）	DIN30672	≥4N/cm
Copper stability	ASTM D2671	No corrosion
Antibacterial	ISO846	BY

Ordering Information:

Specification	Product inner diameter(mm)	After shrinking the inner diameter(mm)	Wall thickness after shrinking(mm)	Standard length(mm)
28/6	≥28	≤6	≥2.5	1220
33/8	≥33	≤8	≥2.5	1220
40/12	≥40	≤12	≥2.7	1220
45/12	≥45	≤12	≥2.7	1220
55/16	≥55	≤16	≥2.7	1220
65/19	≥65	≤19	≥2.8	1220
75/22	≥75	≤22	≥3.0	1220
85/25	≥85	≤25	≥3.0	1220
95/25	≥95	≤25	≥3.0	1220
115/34	≥115	≤34	≥3.0	1220
140/42	≥140	≤42	≥3.0	1220
160/50	≥160	≤50	≥3.0	1220
180/58	≥180	≤58	≥3.0	1220
205/65	≥205	≤65	≥3.0	1220
