GP05 Outdoor Optical Cross Connection Cabinet

Catalog Download(GP05W)

The GP05 Outdoor Optical Cross Connect Cabinet is widely used for cross-connecting of outdoor fiber optical cables. It offers ideal environment for fibers to be spliced and stored in outdoor environment.

Descriptions:

• Stainless steel plate body ensures excellent performance of anti-erosion,
  aging resistance and pleasing appearance.
• The cabinet has functions of cable termination, as well as fiber
  distribution, splice, storage and dispatch.
• Solid and fully-closed structure with the advantages of good performance of
  dust-proof, pleasing and neat appearance.

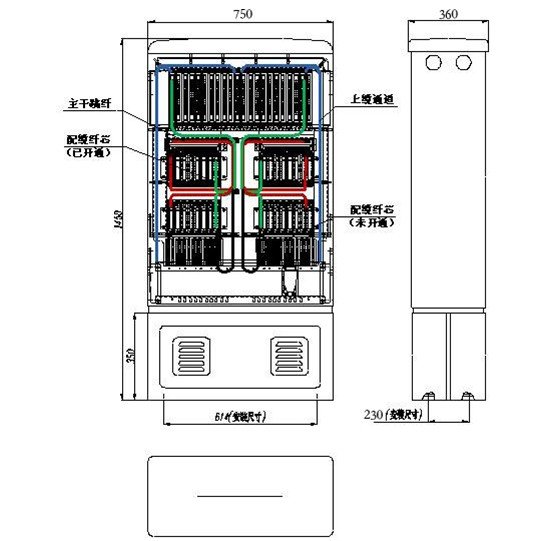

• Structure of cabinet: Double-layered with round angles, single-door cabinet.
• Excellent waterproof and dustproof performance.
• Lock provided on every cabinet ensures the safety of the fibers.
• Multi-functions – various types of LongXing Distribution Units (DU) are
  available for making different combinations.
• Disc-shaped direct splice tray (12-24 cores/ tray) is adopted can be used
  for direct splicing.
• Accommodates SC, FC and LC and ST adapters.
• Earth protection provided for every incoming optical cable.

Environment conditions:

• Temperature: -40℃ ~+ 60℃
• Relative Humidity: ≤95% (at 40℃)
• Cable Entrances: 2 In 2 Out
• Atmospheric pressure : 70kPa ~ 106kPa

Technical Specifications:

• The protection grade reaches IP65.
• Working with wavelength of 850nm, 1310nm and 1550nm.
• Pressurization between the frame high voltage protection earth device and
  the frame: ≥3000V (DC) / 1 minute without any breakdown or flashover.
• Insulation resistance between the frame high voltage protection earth device
  and the frame: ≥20,000MΩ/ 500V (DC).
• Each surface of the cabinet can bear a vertical pressure over 980N.
• The outermost part of the door can bear a vertical pressure over 200N when
  the door is open.
• The fixing position of cable can bear an axial tensile force 1000N, as well
  as three times of recyclable torsion of ±90°.
• Mechanical durability: No damage for all connectors and adaptors after 500
  mating times.
• The curvature radius: >40mm.

Note: The part number above are for the cabinet only, DU / Adapter / Pigtail and
other relevant accessories are not included. Please state clearly what
accessories are needed when requesting quotations or placing orders, see
individual catalogs for ordering details of the accessories.
