Description

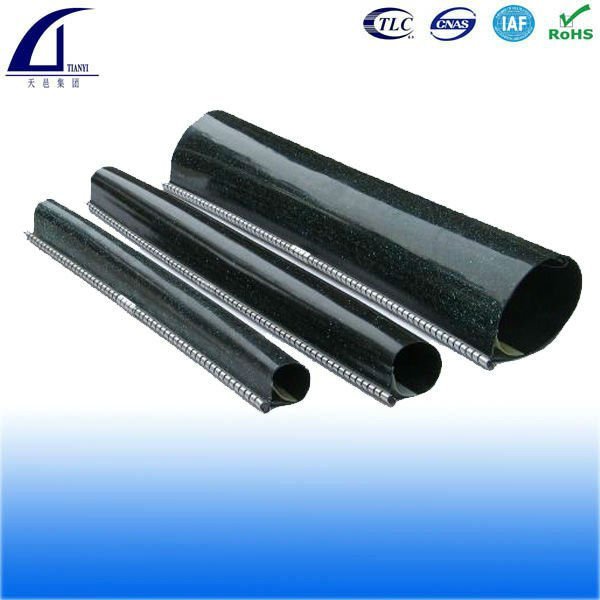

RSBW Wrap Around Heat Shrink Cable Repair sleeve, equals to CRSM heat shrinkable wraparound cable repair system. It is closed with a flexible stainless-steel locking channel. Length of heat shrink sleeve is unlimited because of special production process. And the sleeve can be cut to suit short application requirements.
RSBW Wrap Around Heat Shrink Cable Repair Sleeve Applications:
• Cable jacket repair
• Primary insulation cover on low voltage cables
• Re-jacketing cover for power cables
RSBW Wrap Around Heat Shrink Cable Repair Sleeve Specificaton:
Selection | Supply Size | Diameter after Being Shrunk | Cable’s diameter (mm) |
RSBW 34/10 | 35 | 9 | 7~15 |
RSBW 36/10 | 36 | 10 | 12~20 |
RSBW 50/15 | 50 | 15 | 18~40 |
RSBW 60/18 | 60 | 18 | 20~50 |
RSBW 70/22 | 70 | 22 | 25~60 |
RSBW 80/25 | 80 | 25 | 30~70 |
RSBW 100/30 | 100 | 30 | 35~90 |
RSBW 135/38 | 135 | 38 | 40~120 |
RSBW 164/45 | 164 | 45 | 50~150 |
RSBW 185/55 | 185 | 55 | 65~165 |
RSBW 200/60 | 200 | 60 | 80~180 |
RSBW 220/65 | 220 | 65 | 90~200 |
RSBW 240/70 | 240 | 70 | 100~220 |
RSBW 260/75 | 260 | 75 | 120~240 |
RSBW 280/80 | 280 | 65 | 140~260 |
RSBW 300/85 | 300 | 65 | 160~280 |
These Wrap Around heat shrink cable repaire sleeves can be customized, with or without valve.
