Description

RSBJW Heat Shrink Wraparound Cable Repair sleeve, equal to CWST heat shrinkable wraparound cable repair sleeve, 3M HDCW Heat Shrink Cable Repair Sleeve and Hellermanntyton RMS wrap-around sleeves. It is primarily designed to repair damaged cable jacketing quickly. These wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Our Heat Shrink Cable Repair Sleeve RSBJW offers excellent protection against mechanical stress. This wraparound sleeve with hot melt adhesive, forms a durable, moisture resistant seal. The cross linked polyolefin construction offers reliable performance in harsh environmental conditions. The wrap sleeve design allows it to be installed in tight spaces with ordinary heating. ANSI C119.1 Requirement and RoHS Compliant.
RSBJW Heat Shrink Wraparound Cable Repair Sleeve Applications:

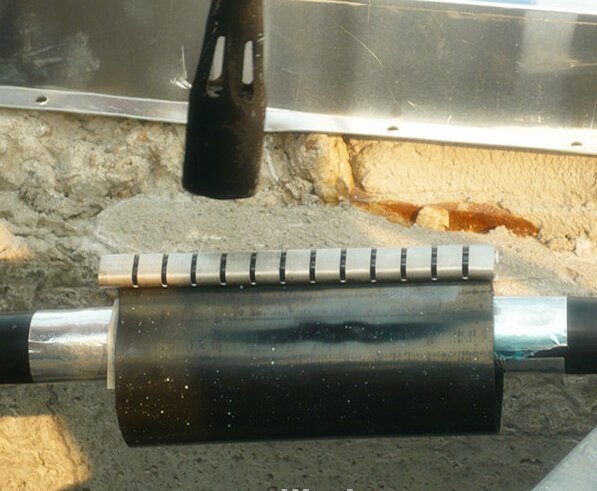

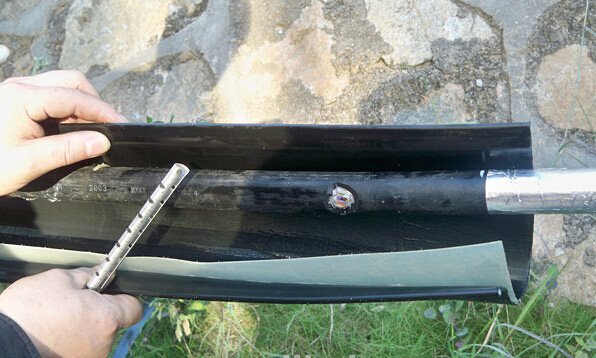

• Cable jacket repair
• Primary insulation cover on low voltage cables
• Re-jacketing cover for power cables

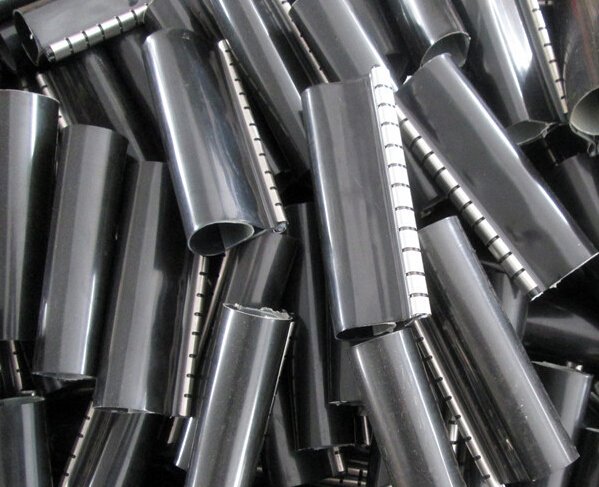

Heat Shrink Wraparound Cable Repair Sleeve

RSBJW Heat Shrink Wraparound Cable Repair Sleeve Specificaton:

Description	Max. Cable Dia.	Min. Cable Dia.	Length Supplied	Remark
RSBJW 35/12-XX	35	12	100~1500mm
RSBJW 45/15-XX	45	15	100~1500mm
RSBJW 55/18-XX	55	18	100~1500mm
RSBJW 65/22-XX	65	22	100~1500mm
RSBJW 75/25-XX	75	25	100~1500mm
RSBJW 90/30-XX	90	30	100~1500mm
RSBJW 100/30-XX	100	30	100~1500mm
RSBJW 110/37-XX	110	37	100~1500mm
RSBJW 125/37-XX	125	37	100~1500mm
RSBJW 135/45-XX	135	45	100~1500mm
RSBJW 150/45-XX	150	45	100~1500mm
RSBJW 170/55-XX	170	55	100~1500mm
RSBJW 220/55-XX	220	55	100~1500mm
