IP68 Rated GP03J-C2 48 cores Vertical Horizontal fiber optic joint enclosure

Product Description:

The GP03J outdoor fiber optic joint enclosure is a kind of optical fiber cable joint enclosure capable for the perfect protection of the junction points of optical fiber cable from the enviroment, especially from the permeation of water. It is also called in-lin fiber optic joint enclosure, which can be used for underground,aerial,building entrance and direct buried applications. The optical fiber joint enclosure is comprised of a buttom and cover molding in ABS material.

Advantages:

Suitable for aerial, cable duct, direct buried, pedestal and well applications
Easy installation with no special tool required
Re-enterable with no re-entry kit needed
High compressive strength
Chemical resistant
Suitable for ribbon and non-ribbon fibers
Reliable gasket sealing

Product Standard:

Specification of Fiber Optic Outdoor Splice Closure No. YD/T814.1-2004 by MII
Specific Rules for Compulsory Certification of Distribution Equipment (VD.3)

Application:

Widely used in aerial, duct places outdoor and can be directly buried underground.

Features:

· Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive.
· made of material with good capability of outdoor environment resistance and high durability
· Having reliable cable fixing and grounding facilities.
· Using self-adhesive isolative tape and glue belt to seal.
· To use rotating method to connect fiber organizer cassette result in easy installation.
· Mechanical design suitable for installing, fiber splicing storage and cable connection
· Compact and tight.

Main Technical Parameters

· Applicable environment temperatures: -10℃~+70℃
· Air pressure: 70~106Kpa
· Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m
· Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 30N.m (±90°)
· Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70℃ for 100 hours
· Insulation resistance≥2×104MΩ,resistance to 1.5KV/min without break down
· Life expectancy: 25 years

The capacity of Closure

P/N	The Nos. of splice tray	Capacity for Single Fiber	Capacity for Ribbon Fiber
GP03J-12	1	12	24/2
GP03J-24	2	24	48/4
GP03J-36	3	36	72/6
GP03J-48	4	48	96/8
GP03J-60	5	60	120/10
GP03J-72	6	72	144/12
GP03J-96	4	96	288/12
GP03J-120	5	120	288/12
GP03J-144	6	144	288/12

Remarks:
the ribbon fiber cable has 12 cores each ribbon. If the user use 8 cores, 6 cores and 4 cores ribbon cable, the nos. of ribbon cables can be added on the condition that installation can be managed easily.

The dimensions of the closures

GP03J-12/24/36/48/60/72 L×W×H=436×190×114
GP03J-96 L×W×H=440×190×80

Components of closure:

1. closure body 2. fiber organizer cassette 3. scuff cloth 4. supporting frame

5. aerial buckle 6. cable fixing frame 7. cleaning tissue 8. self-adhibiting insulative tape 9. grounding facility 10. hole plug 11. shield continuity wire

12. fixing pole for strengthened core 13. naked fiber protection tube

14. clamping board for optic fiber cable 15. fixing socket bracket 16. insulative tape

17. self-adhibiting insulative glue belt 18. insulative cushion

19. optic fiber cable supporting ring 20. tie-wrap 21. fiber melting protection tube

22. Fiber-optic cable steel core connection string 23. six angles spanner.

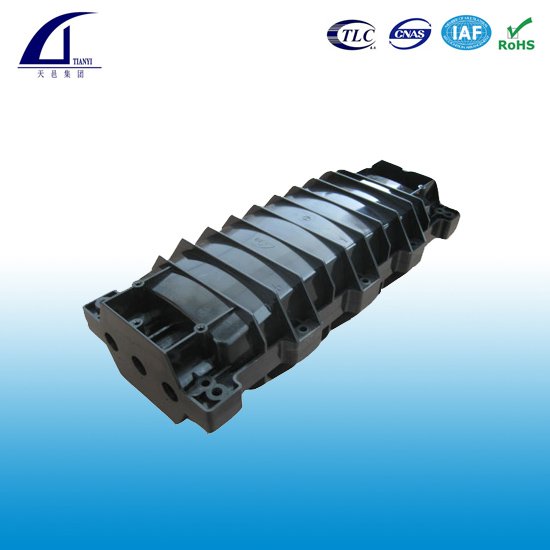

Opticlal fiber joint enclosure photo:

GP03J C2 IP68 48 cores fiber optic splice closure FOSC
