FTTH Drop Cable Assemblies

FTTH drop cable, aslo called FTTH fiber optic cable, FTTH flat drop cable, is a kind of special curved optical fiber, which providing greater bandwidth and enhanced network transmission characteristics. This cable replaces the standard copper wire of the local Telco as it can carry high-speed broadband services integrating voice, data and video, and runs directly to the junction box at the home or building.

FTTH indoor drop cable assemblies are made up by optical communication unit, strengthen pieces and the sheath composition, that is put the optical communication unit in the centre, both sides parallel place two root non-metallic strengthen members (FRP) or metal strengthening component phosphating steel wire, finally squeeze the black color LSZH sheath into cable. Also, customers can specify your required connectors.

Note:

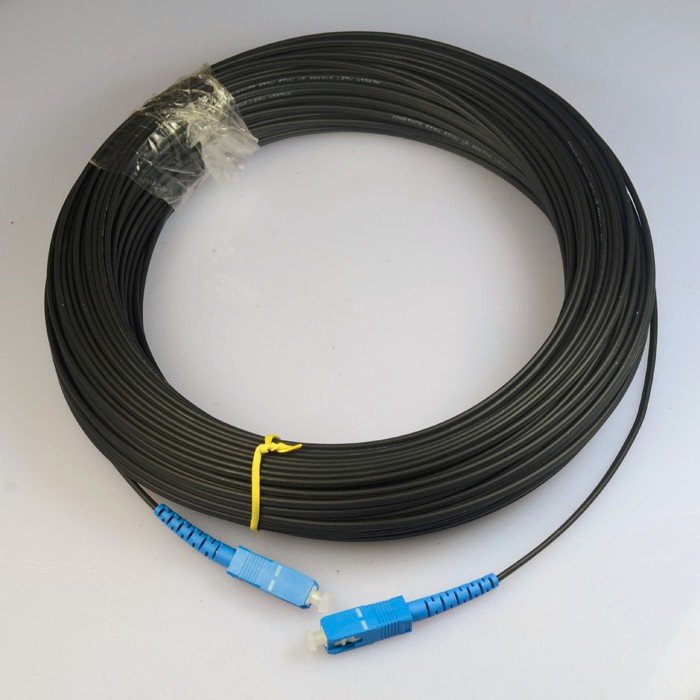

1.This picture is for SC-SC SM DX FTTH Indoor Cable. Please just take it as a reference.

2.If the G652D fiber is not in stock, we will use G657A1 as default.

Key Features
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke zero halogen and flame retardant sheath

Applications
FTTH system
Indoor riser level and plenum level cable distribution
Interconnect between instruments, communication equipment

Specifications
