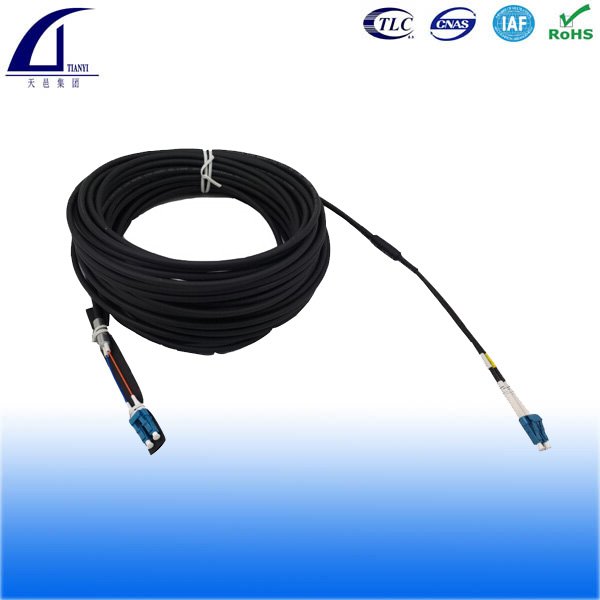

Fiber to the Antenna-FTTA RRU Armored Outdoor Patch cord

FTTA RRU Armored Outdoor Patch cord Description:

FTTA RRU Armored Outdoor Fiber Patch cord is used for Fiber to the Antenna, and Duplex Base Station Far Transmission fiber optic patch cable is kind of Indoor/Outdoor patch cord, built on LSZH cables with 7.0mm or 4.8mm diameter, with water blocking aramid yarns and UV resistant black out jacket.

DLC/PC- DLC/PC Optical cable assembly Multimode GYFJH 2B4(LSZH), 7.0mm 2 cores, outdoor protected branch With armored tube.

Benefits of FTTA RRU Armored Outdoor Patch cord:

Relative to Coax-Fed Antennas	Relative to Homerun Architecture (Separate cables from each remote radio to the base station.)
Fiber-fed remote radios (RRs) offer significant power savings (as little as 50% of the power for the same coverage area.) Reduce wind and weight load on towers; avoid costly tower upgrades. Reduce installation cost through fewer cables sheaths (70% less) compared to coax.	Reduce installation time and cost through fewer cable sheaths. Fast and easy connection and upgrade via tower-top terminal. Pre-provision for future equipment additions (spare ports). Field-proven technology successfully deployed in FTTH; standards-driven reliability

FEATURES

Open bulkhead for easy access to SFP
Positive mechanical feedback to operator when fully mated
One-hand mating
Duplex LC interface
Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Multimode and single mode
Water proof, dust proof and corrosion resistant
Expansion to RJ45 and Power possible
Plug has tolerance free design, fully free floating on Z-axis
No Cable buckling during or after installatoin
Cost effective metal die cast bulkhead
Field installable version available
