Description

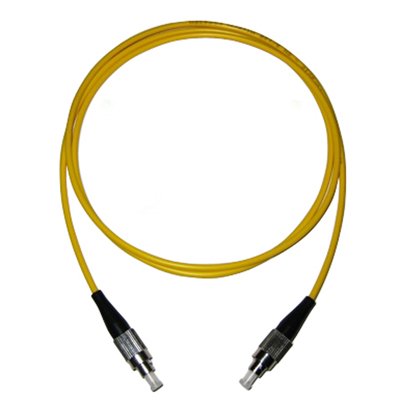

9/125mm, FC-FC Singlemode Simplex fiber optic patch cable

Description:

A fiber optic patch cable, also called fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.

PC, UPC, and APC polish available.

Feature:

1. Low insertion loss

2. High return loss

3. Great repeatability

4. High temperature stability

5. High interchangeability

6. Simplex and duplex are available

Application:

1. CATV

2. Optical fiber communication systems

3. Optical fiber data transmission

4. Building network access

5. Cabling system, ODF

6. FTTX applications

Fiber Optic Connectors Types
ST	SC	LC	MT-RJ

The ST connector uses a push-and-turn-to- lock system.	Has a molded plastic plug casing and a push/pull locking system.	Small form factor connector that resembles a mini SC connector.	Small form factor connector with a square plastic casing that contains both fiber strands in a single polymer ferrule.

Specifications:

Connector type	SC; FC; LC; ST; MTRJ; MU; E2000; MPO; SMA; FDDI; DIN4; D4
Ferrule End face	PC; UPC; APC
Om type	9/125UM; 50/125UM; 62.5/125UM
Cable quantity	Simplex; Double; 6cores; 12cores; 16cores; 24cores; 36cores; 48cores
Cable Diameter	Φ3.0MM; Φ2.0MM; Φ0.9MM
Cable length	1M; 2M; 3M; 4M etc., can be customized
Cable type	PVC; LSZH; OM3; OFNR; OFNP; Plenum; Armored

The construction of a fiber optic cable:

Cable Jacket – The outermost layer of the
fiber cable.

Strengthening fibers – The strengthening
fibers that help protect the core against damage during installation or from
being crushed.

Coating – This layer of thicker plastic
surrounds the cladding and helps protect the fiber core.

Cladding – The layer that protects the
core and causes the neccessary reflection to allow light to travel through the
fiber-core segment.

Core – The physical component that
transports the optical data signal, made up of a continuous strand of glass. The
core’s diameter is measured in microns.

Explanation of Fiber Cable
Core	Cladding	Mode
62.5	125	Multimode
This number means that the core diameter of this cable is 62.5 microns.	This number means that the cladding of this cable is 125 microns.	This refers to the mode of the cable.
