Description

Branch Off Kits-branch off clips for heat shrinkable joint closure system

Branch Off Clip (BOC) Description

A branch-off clip is a mechanical device used in conjunction with heat-shrinkable closures or tubing sleeves to seal and secure branch points in cables. It is generally made of cast by aluminum alloy to sustain high temperature an coated with hot melt adhesive(EVA or PA) on the middle finger.

Branch Off Kit (BOKT) Description:

Branch off kit is a abbreviated as BOKT. Generally, beside the branch-off clip, the branch-off kit(BOKT) is supplied with other accessories including:

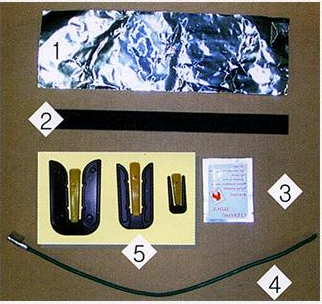

Branch Off Kits Accessories:

Aluminum tape
Sand paper
Cleaning tissue
Grounding wire, also called as Shield continuity wire
Ground connector, also called as Shield continuity connector
Branch off clip(Extra Large, Large, Medium, Small)

Description	To be used with
BOKT-5S-43/8-55/12	XAGA-5xx-43/8-xxx and XAGA-5xx-55/12-xxx
BOKT-5M-75/15-92/25	XAGA-5xx-75/15-xxx and XAGA-5xx-92/25-xxx
BOKT-5L-100/25-125/30	XAGA-5xx-100/25-xxx and XAGA-5xx-125/30-xxx
BOKT-5XL-160/42-200/50	XAGA-5xx-160/42-xxx and XAGA-5xx-200/50-xxx

Remark:

There two kinds of branch off clip for every size:the regular size for RSB series wraparound heat-shrinkable sleeves for non-pressurized telecommunication cable, the intensive size for the RSBA series wraparound heat-shrinkable closures.

Customized dimensions and accessories acceptable.
