Description

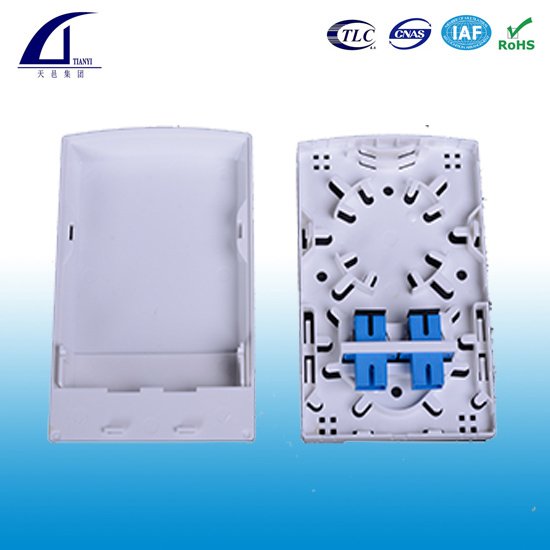

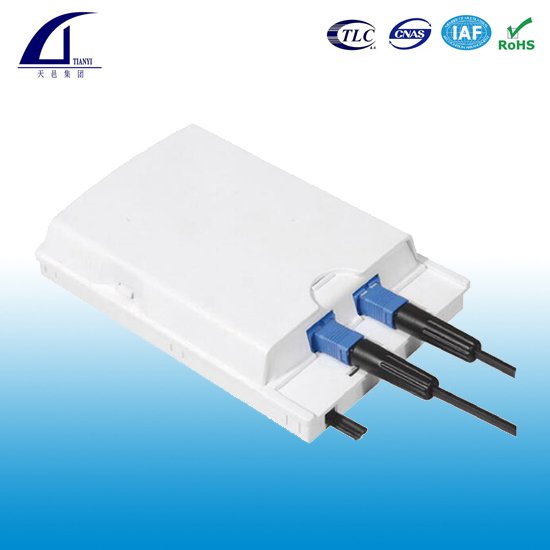

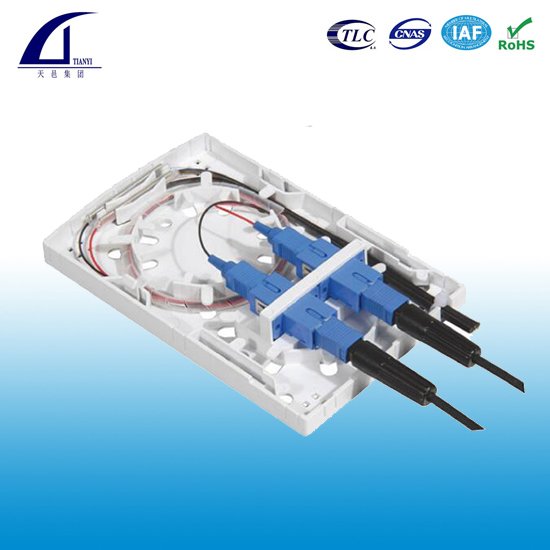

2 ports Fiber Optic Wall Plate Outlet,also called faceplate-fiber-socket-panel.html target=”_blank”>FTTH faceplate-fiber-socket-panel.html target=”_blank”>Socket Panel, FTTH Face plate,fiber face plate,fiber optical Socket Panel, is a type of FTTH terminal products for FTTH indoor application. It is suitable for home or office to provide end users with optical access or data access.
Description:
Used in the end termination of residential buildings and villas, to fix and splice with pigtails.
Features:
- Scope of application 3.0 x 2.0 mm drop cable or indoor cable
- Fiber Cladding Diameter 125μm ( 652 & 657 )
- TBF Diameter 250μm & 900μm
- Applicable Mode Singlemode & Multimode
- Tensile strength >50 N
- Operating temperature -40~+85℃
- Adapter SC & LC
- Insertion loss ≤0.2dB(1310nm & 1550nm)
- Insertion loss 2
Application:
Used in FTTH indoor application, home or work area
Provide users with optical access or data access
Store surplus fiber inside, easy for operation
Specifications:
Model | Size | Max Capacity | Installation Size | ||
GOM-A-2H | W*L*H | SC | LC | PLC | D(mm) |
83.4*130*24.1 | 2 | 4 | 4(LC) | 159*80 | |
Socket Panel-Termination Box” width=”626″ height=”580″ title=”2ports Fiber Optic Wall Plate Outlet-Face Plate-Socket Panel-Termination Box” align=”” />
We can also customize according to customer’s specific requirement. Welcome to inquiry us.
