Description
1×8 PLC LGX Splitter SC/APC
Fiber Optic PLC Splitter is an important component in FTTX/FTTP/ FTTH/ PON network. It is used to distribute the optical signal from CO to number of premises. The LGX PLC Splitter integrates the PLC splitter into an LGX box to be well-protected. It can be used both in Fiber Optic Distribution Box(FDB), Fiber Optic Cross Connection Cabinet and Fiber Optic Patch Panels etc. The strong body protects the parts and splitters components inside, while there are pre-teminated adapters on the LGX box to connect to outside equipment.
Sichuan Tianyi Comheart Telecom Co., Ltd has been specializing in producing Fiber Optic PLC Splitter since 1996 by importing Wafer from South Korea. We have good control of quality and lead time for manufacturing 1*N and 2*N Fiber Optic PLC Splitters according to customer’s requirements.
LGX PLC Splitters Features:
low insertion loss
Low polarization loss
High directivity
Small size
Wavelength: 1260~1650nm
LGX PLC Splitters Application:
Testing equipment
FTTH&LAN
Telecommunication network system
PON
LGX PLC Splitters Compliance:
RoHs
Telcordia GR-1209-core
GR-1121-core
LGX PLC Splitters Specification:
Parameter |
| 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
Insertion loss(dB) | With connector Max | 7.5 | 11.2 | 14.4 | 17.4 | 20.5 |
Without connector Max | 7.2 | 10.9 | 14 | 17 | 20.2 | |
9 | ||||||
Uniformity(dB) | Max | 0.6 | 0.8 | 1 | 1.5 | 2 |
Return loss(dB) | Min | 50 | ||||
PDL(dB) | Max | 0.25 | 0.3 | |||
Orientation(dB)1.3 | Min | 55 | ||||
Dimension | (LxWxH mm) | 130*100*25 | 130*100*50 | 267*100*50 | 267*100*102 | |
Work temperature(℃) |
| -40~+85 | ||||
Work wavelength(nm) |
| 1260~1650 | ||||
Fiber length(m) |
| 0.5 | ||||
Fiber type(mm) |
| Ø0.9 | ||||
Connector |
| FC/UPC,SC/UPC,LC/UPC,FC/APC,SC/APC,LC/APC or customize | ||||
LGX PLC Splitters overview:

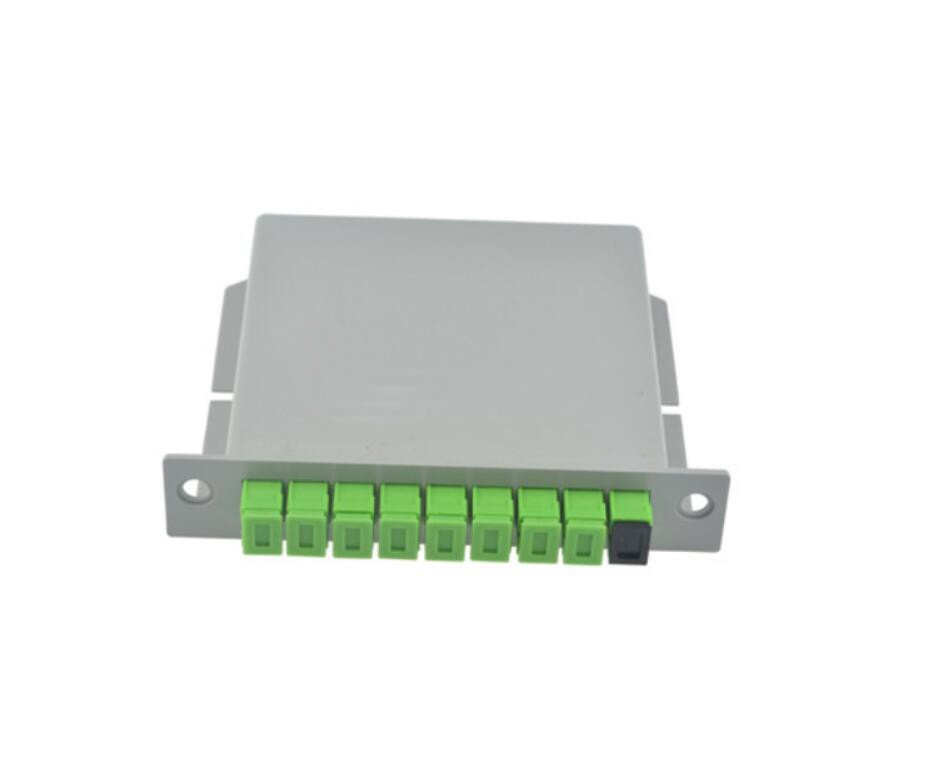

1X8 LGX PLC Splitter SC/APC
1X8 LGX PLC Splitter SC/APC
