Description
1×8 Fiber Optic PLC Splitter Module
Introduction:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

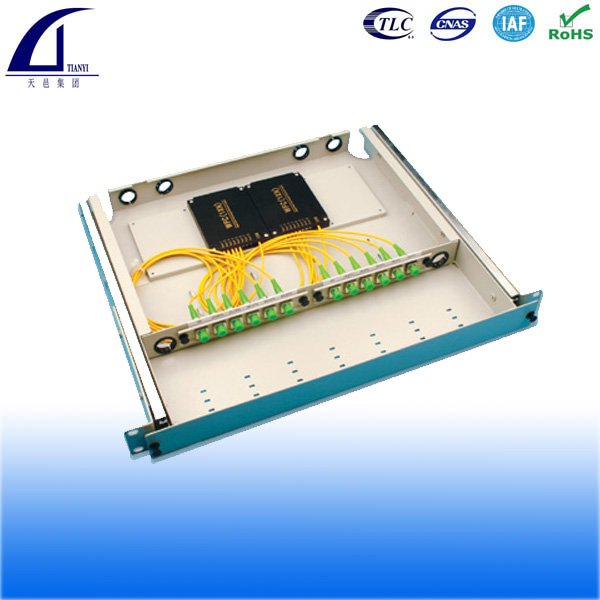

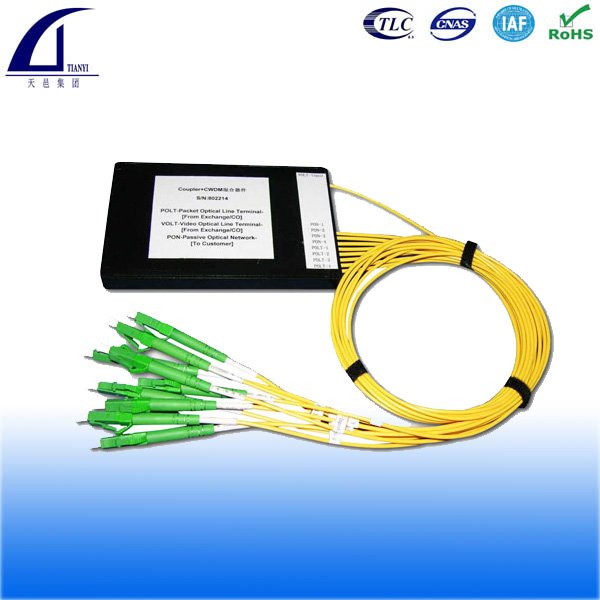

Tianyi offers a variety of box and cassette type splitter modules and products. This
PLC Splitter Module is a plastic module called an ABS box with ruggedized fiber

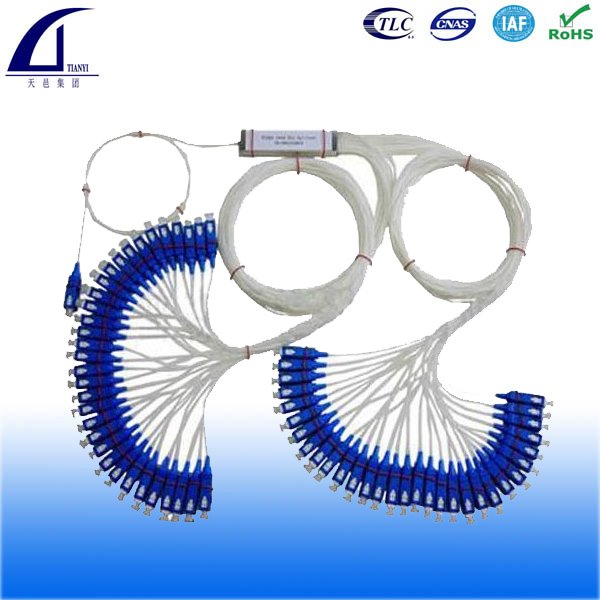

jackets of 2mm and up to 3mm with no connectors. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Features:
- Low Insertion Loss
- Low PDL (Polarization Dependent Loss)
- Compact Design
- High Reliability and Stability
- Good channel-to-channel uniformity
- Wide Operating Wavelength:
From 1260nm to 1650nm - Wide Operating Temperature:
From -40°C tp 85°C
Applications:
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
- Compliance:
- Telcordia GR-1209-CORE
- Telcordia GR-1221-CORE
- RoHS
Specifications:
Parameter | Unit | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 | |
Insertion Loss at 23°C | Typ. | dB | 3.6 | 7 | 9.5 | 10.4 | 12.4 | 13.6 | 17 | 20.5 |
Max | dB | 4 | 7.4 | 10 | 10.8 | 12.8 | 14 | 17.4 | 21 | |
Channel Uniformity | Max | dB | 0.6 | 0.8 | 1 | 1 | 1 | 1.3 | 1.5 | 1.8 |
PDL | Typ. | dB | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.2 | 0.3 |
Max | dB | 0.2 | 0.2 | 0.3 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
Return Loss | Min | dB | 50 | |||||||
Directivity | Min | dB | 55 | |||||||
Operation Wavelength | nm | 1260~1650 | ||||||||
Operation Temperature | °C | -40-~+85 | ||||||||
Storage Temperature | °C | -40-~+85 | ||||||||
Fiber Type | – | G.657A or Customized | ||||||||
Parameter | Unit | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
Insertion Loss at 23°C | Typ. | dB | 4.2 | 7.5 | 11 | 14.3 | 17.4 | 21.5 |
Max | dB | 4.5 | 7.9 | 11.4 | 14.7 | 17.9 | 22 | |
Channel Uniformity | Max | dB | 1.2 | 1.5 | 1.6 | 2 | 2.5 | 3 |
PDL | Typ. | dB | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 |
Max | dB | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | |
Return Loss | Min | dB | 50 | |||||
Directivity | Min | dB | 55 | |||||
Operation Wavelength | nm | 1260~1650 | ||||||
Operation Temperature | °C | -40-~+85 | ||||||
Storage Temperature | °C | -40-~+85 | ||||||
Fiber Type | – | G.657A or Customized | ||||||
Product Size:
Parameter | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×32 | 1×64 |
Splitter Size(H*W*L mm) | 10x80x100 | 18x80x120 | ||||||
