Description

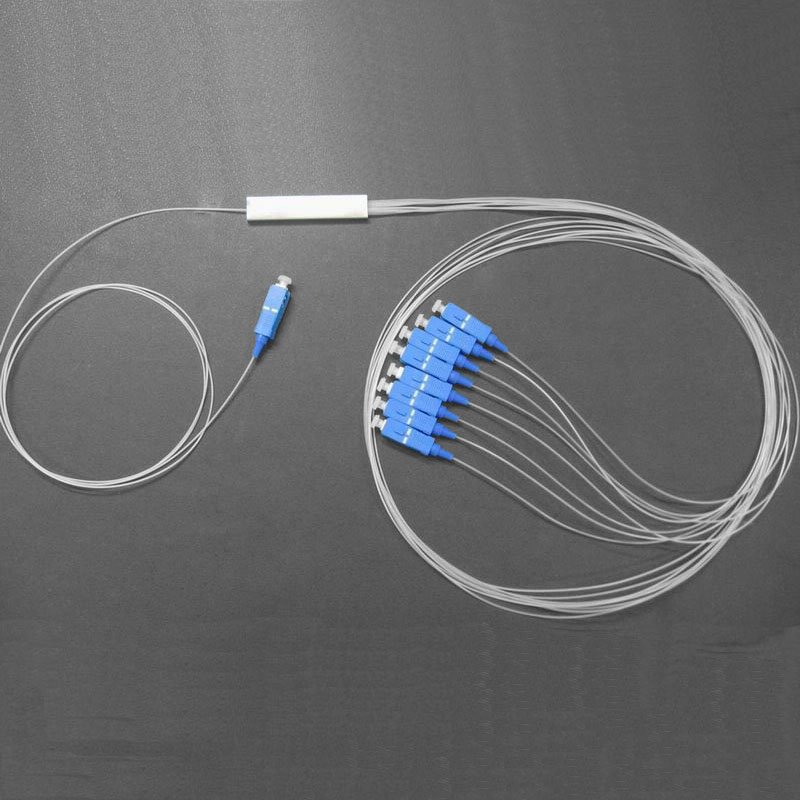

1×8 PLC Splitter, G.657A1 Fiber,0.9mm in & out-SC/APC connector
Introduction:
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

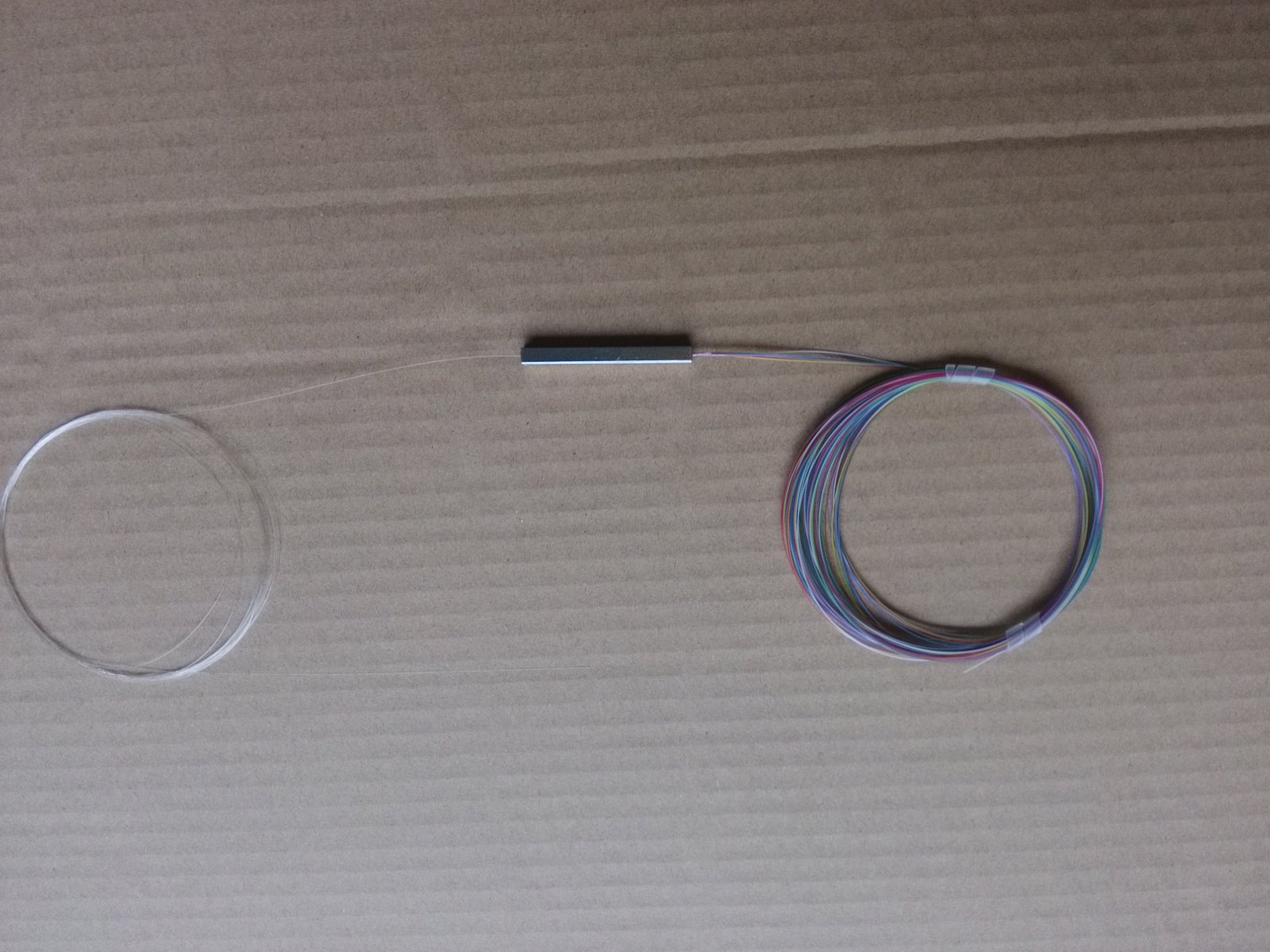

Tianyi offers a variety of bare fiber type PLC splitters. The bare fiber PLC splitters can be easily placed in a formal joint box or fiber optic splice closures. The bare fiber PLC splitters generally come with 250um bare fiber
or 900um buffered fiber with or without connectors. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.Features:
- Low Insertion Loss
- Low PDL (Polarization Dependent Loss)
- Compact Design
- High Reliability and Stability
- Good channel-to-channel uniformity
- Wide Operating Wavelength:
From 1260nm to 1650nm - Wide Operating Temperature:
From -40°C tp 85°C
Applications:
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
- Compliance:
- Telcordia GR-1209-CORE
- Telcordia GR-1221-CORE
- RoHS

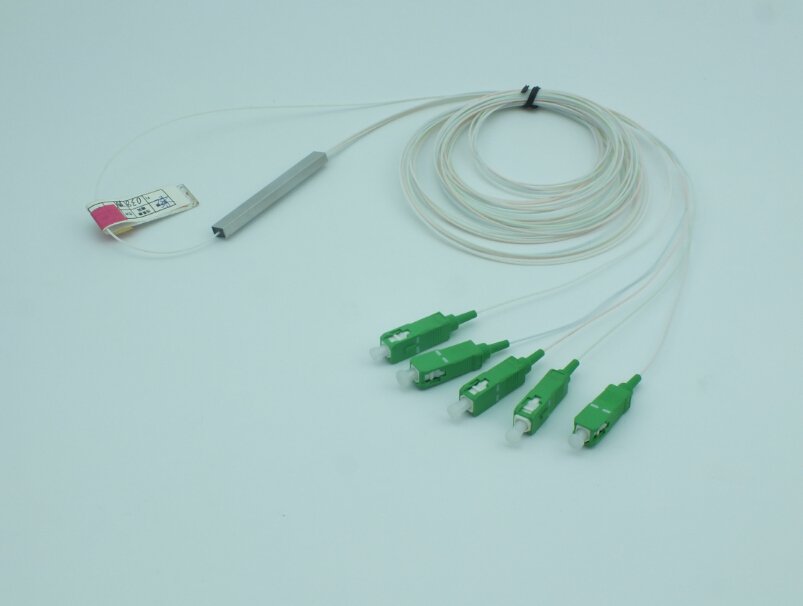

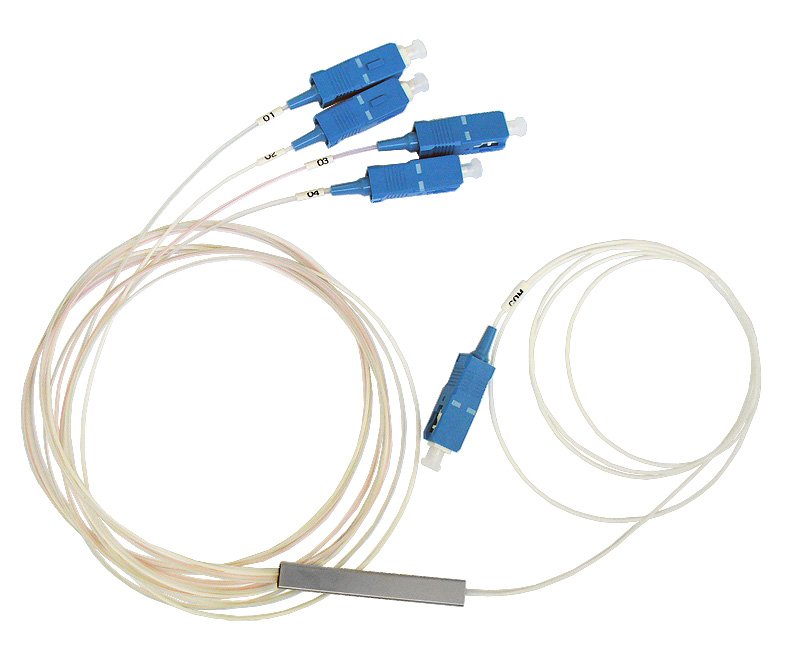

1×N &
2×N Mini Tube PLC Splitters
PLC
Splitter is based on the Planar Waveguide Technology. It provides a low cost power distribution
solution with
small
form factor and
high reliability.
Features
l Low
Insertion loss
l Low
PDL
l High
Return Loss
l Uniform Power Splitting
l Compact Design
l Wide Operating Wavelength
l Wide Operating Temperature
l Excellent Environmental &
Mechanical Stability
l Qualified
Under Telcordia GR-1221 and GR-1209
Applications
l FTTX (FTTB,
FTTH, FTTC)
l Passive Optical
Networks (PON)
l Local Area Networks (LAN)
l CATV Systems
l Test Equipments
Specifications(1×N Splitters):
Parameter | Unit | Value | ||||||
Product Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | ||
Size(mm) L*W*H | 60*7*4 | 60*12*4 | 80*20*6 | 100*40*6 | ||||
Operating Wavelength | nm | 1260~1650 | ||||||
Insertion Loss | Typ. | dB | 4.1 | 7.4 | 10.5 | 13.8 | 17.1 | 20.5 |
Max. | 4.4 | 7.7 | 11.0 | 14.2 | 17.5 | 21.0 | ||
Uniformity (Max.) | dB | 0.5 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | |
PDL(Max.) | dB | 0.3 | 0.5 | |||||
Directivity (Min.) | dB | 55 | ||||||
TDL(Max.) | dB | 0.5 | ||||||
Return Loss | dB | ≥55(APC type connectors) / 50(UPC | ||||||
Pigtail Diameter | mm | 0.9 | ||||||
Pigtail Length | M | Custom length | ||||||
Connector | FC/UPC,SC/UPC,LC/UPC, FC/APC,SC/APC,LC/APC or | |||||||
Note: All the data above does
not include connectors.
UPC Connectors: IL
add 0.2 dB,
APC Connectors: IL add 0.3 dB.
Specifications(2×N Splitters):
Parameter | Unit | Value | ||||||
Product Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | ||
Size(mm) L*W*H | 60*12*4 | 80*20*6 | 100*40*6 | |||||
Operating Wavelength | nm | 1260~1650 | ||||||
Insertion Loss | Typ. | dB | 4.4 | 7.7 | 10.8 | 14.1 | 17.4 | 20.8 |
Max. | 4.7 | 8.0 | 11.3 | 14.4 | 17.8 | 21.3 | ||
Uniformity (Max.) | dB | 0.5 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 | |
PDL(Max.) | dB | 0.3 | 0.5 | |||||
Directivity (Min.) | dB | 55 | ||||||
TDL(Max.) | dB | 0.5 | ||||||
Return Loss | dB | ≥55(APC type connectors) / 50(UPC | ||||||
Pigtail Diameter | mm | 0.9 | ||||||
Pigtail Length | M | Custom length | ||||||
Connector | FC/UPC,SC/UPC,LC/UPC, FC/APC,SC/APC,LC/APC or | |||||||
Note: All the data above does
not include connectors.
UPC Connectors: IL add 0.2
dB,
APC Connectors: IL add 0.3 dB.
Environmental Conditions:
Operating Temperature | ℃ | -40～+85 |
Storage Temperature | ℃ | -40～+85 |
Operating Humidity | %RH | ≤93 |
Storage Humidity | %RH | ≤93 |
Technical Drawing:
