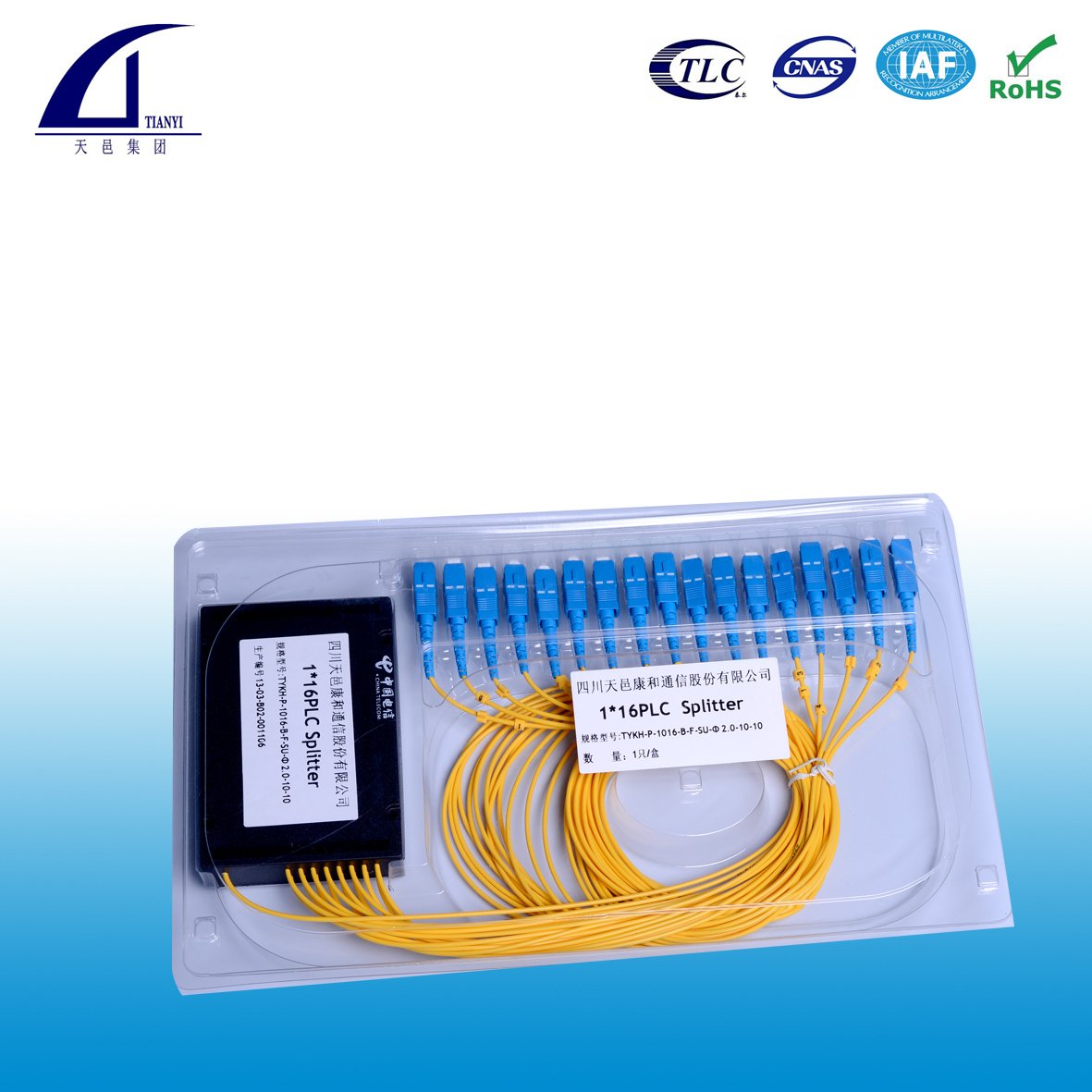

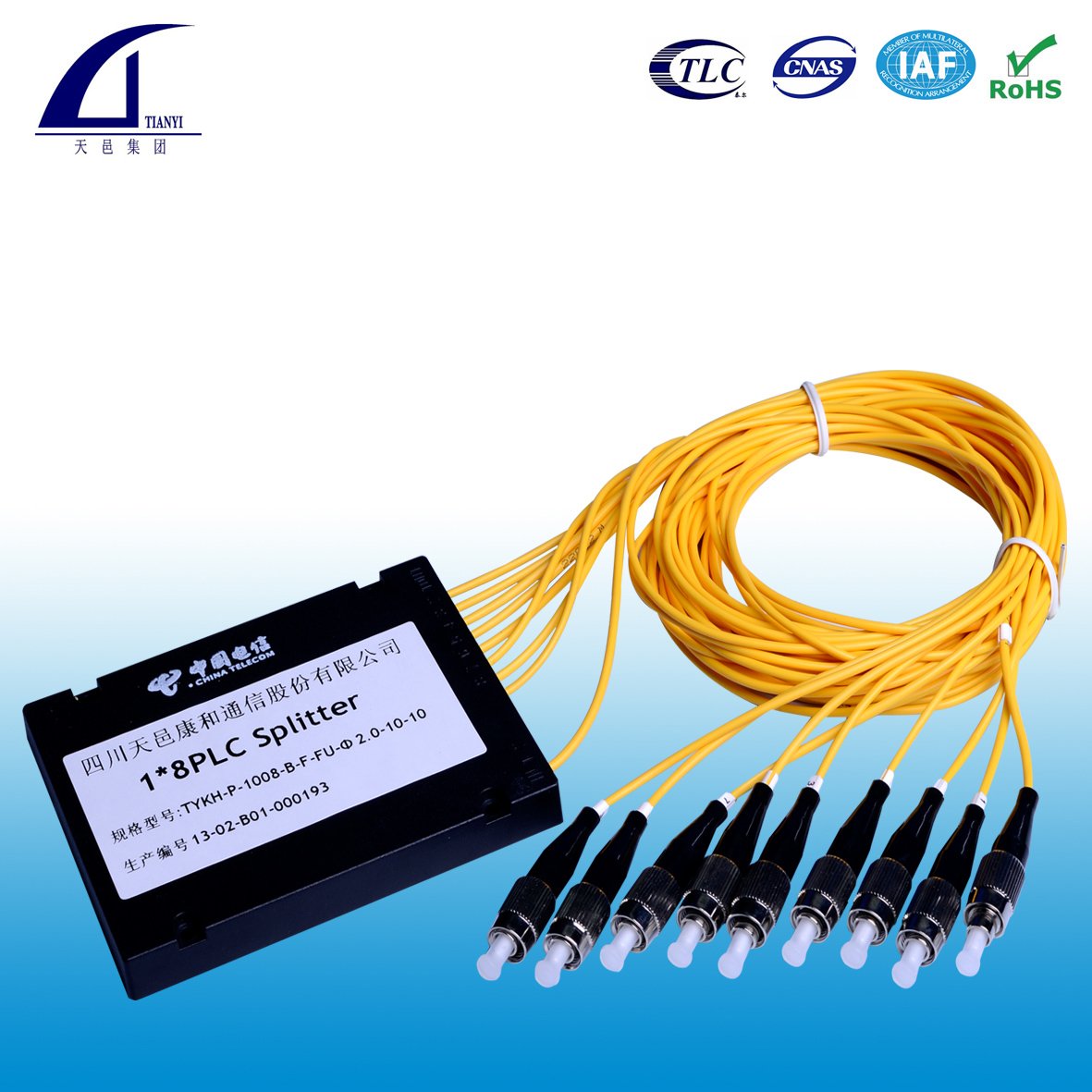

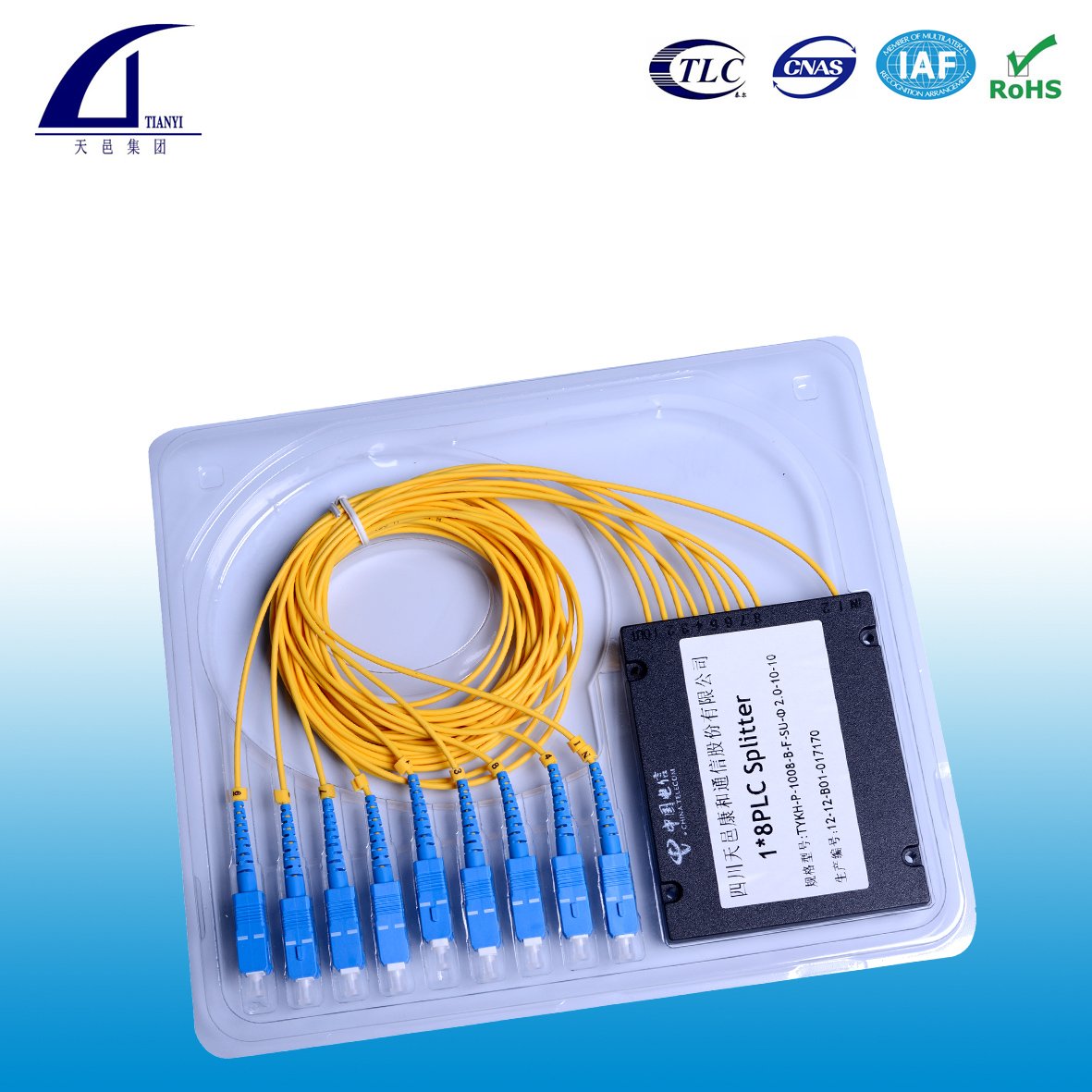

1×4 Fiber Optic PLC Splitter

Introduction:

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Tianyi offers a variety of box and cassette type splitter modules and products. This
PLC Splitter Module is a plastic module called an ABS box with ruggedized fiber
jackets of 2mm and up to 3mm with no connectors. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Features:

Low Insertion Loss
Low PDL (Polarization Dependent Loss)
Compact Design
High Reliability and Stability
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
From -40°C tp 85°C

Applications:

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution
Compliance:
Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

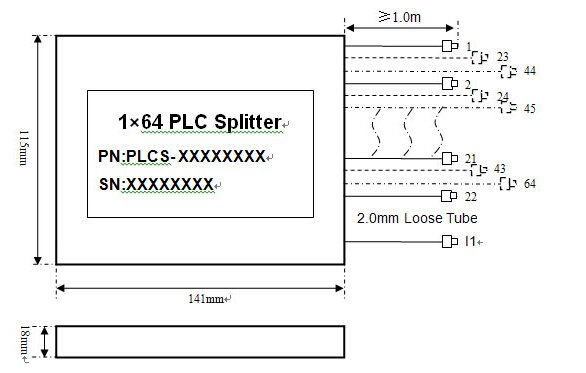

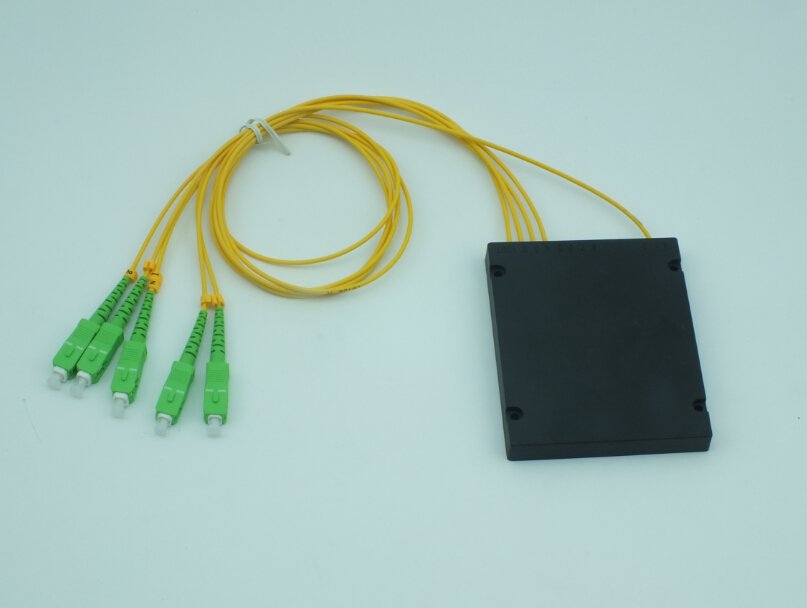

14 fiber optic PLC splitter

Specifications:

Parameter	Unit		1×2	1×4	1×6	1×8	1×12	1×16	1×32	1×64
Insertion Loss at 23°C	Typ.	dB	3.6	7	9.5	10.4	12.4	13.6	17	20.5
Insertion Loss at 23°C	Max	dB	4	7.4	10	10.8	12.8	14	17.4	21
Channel Uniformity	Max	dB	0.6	0.8	1	1	1	1.3	1.5	1.8
PDL	Typ.	dB	0.1	0.1	0.1	0.1	0.2	0.2	0.2	0.3
PDL	Max	dB	0.2	0.2	0.3	0.2	0.3	0.3	0.3	0.4
Return Loss	Min	dB	50
Directivity	Min	dB	55
Operation Wavelength	nm		1260~1650
Operation Temperature	°C		-40-~+85
Storage Temperature	°C		-40-~+85
Fiber Type	–		G.657A or Customized

Parameter	Unit		2×2	2×4	2×8	2×16	2×32	2×64
Insertion Loss at 23°C	Typ.	dB	4.2	7.5	11	14.3	17.4	21.5
Insertion Loss at 23°C	Max	dB	4.5	7.9	11.4	14.7	17.9	22
Channel Uniformity	Max	dB	1.2	1.5	1.6	2	2.5	3
PDL	Typ.	dB	0.2	0.2	0.2	0.2	0.2	0.3
PDL	Max	dB	0.3	0.3	0.3	0.4	0.4	0.5
Return Loss	Min	dB	50
Directivity	Min	dB	55
Operation Wavelength	nm		1260~1650
Operation Temperature	°C		-40-~+85
Storage Temperature	°C		-40-~+85
Fiber Type	–		G.657A or Customized
