> CWST Wraparound Cable Repair Sleeve

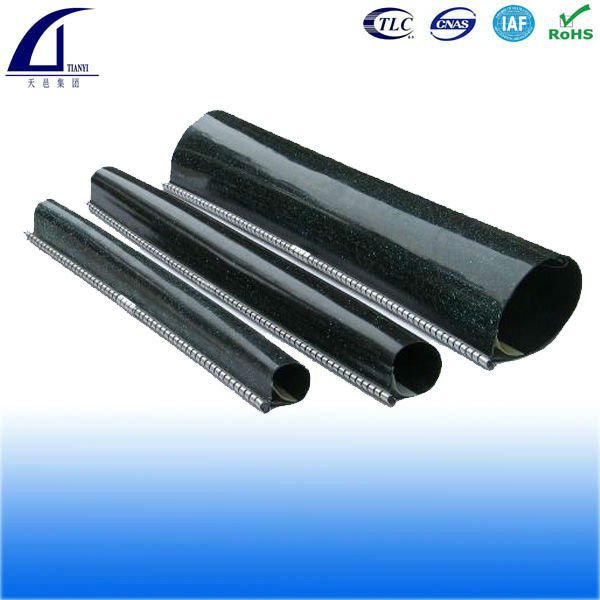

Heat Shrinkable Wraparound Cable Repair System

Product description: 1. Equal to Raychem CRSM Heat Shrinkable Wraparound System for sheathed cable repair; 2. Customer length,printing,logo available; 3. Easy to install and maintan;
Inquiry

Product introduction

RSBW Wrap Around Heat Shrink Cable Repair sleeve, equals to CRSM heat shrinkable wraparound cable repair system. It is closed with a flexible stainless-steel locking channel. Length of heat shrink sleeve is unlimited because of special production process. And the sleeve can be cut to suit short application requirements.

CRSM heat shrinkable wraparound cable repair system
RSBW Wrap Around Heat Shrink Cable Repair Sleeve Applications:

• Cable jacket repair
• Primary insulation cover on low voltage cables
• Re-jacketing cover for power cables

RSBW Wrap Around Heat Shrink Cable Repair Sleeve Specificaton:

Selection	Supply Size	Diameter after Being Shrunk	Cable’s diameter (mm)
RSBW 34/10	35	9	7~15
RSBW 36/10	36	10	12~20
RSBW 50/15	50	15	18~40
RSBW 60/18	60	18	20~50
RSBW 70/22	70	22	25~60
RSBW 80/25	80	25	30~70
RSBW 100/30	100	30	35~90
RSBW 135/38	135	38	40~120
RSBW 164/45	164	45	50~150
RSBW 185/55	185	55	65~165
RSBW 200/60	200	60	80~180
RSBW 220/65	220	65	90~200
RSBW 240/70	240	70	100~220
RSBW 260/75	260	75	120~240
RSBW 280/80	280	65	140~260
RSBW 300/85	300	65	160~280
